soldering Welding Fume Extractor

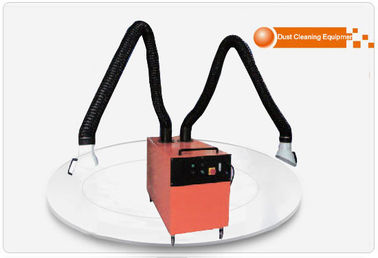

Mobile soldering Welding Fume Extractor double arms stable for light industry

Application:

1. It is used to dust cleaning during welding, polishing, cutting, grinding. etc. and is suitable for working areas where dust is generated, such as arc welding, carbon- dioxide protection welding, MAG welding, carbon arc gouging welding, gas cutting, special welding, etc. Choose single position or double position according to the requirements.
2. It is also suitable for the sites with small dust quantity, such as building material, light industry, chemical industry, machining, metal processing electronics, pharmacy, etc Especially for fixed point cleaning and cooling air recycling in air-conditioning plant with small dust quantity

3. After the start of blower, dust-containing air flow enters dust cleaner through suction arm under negative pressure The air first hits flow distribution plate, and changes the flow direction Bigger size particles settle to the dust hopper under gravity, while the smaller ones enter into filtration chamber 4. After the filtration of flame-retardant nano filter cartridge, dust settles on the outer surface of filter media, purified air enters purification chamber and is exhausted by air outlet after silencing to complete the filtration Resistance of dust cleaner rises with Ihe quantity of dust settles on the surface of filter cartridge, when it reaches the set value of pressure differential meter. PLC control electromagnetic valve will start to work. The compressed air blowback system starts pulse cleaning and sends compressed air into the filter through nozzle, and then the slight shock generated by reverse positive pressure air flow can let the settled dust on filter cartridge fall off into the dust hopper.


Competitive Advantage:

1.  Small size, small occupied area
2.  Equipped with trundle and handle for easy movement.
3.  Equipped with 3m flexible suction arm. which enables the 360 rotation of suction pipe. Adjust the location of suction cover to fit the working condition for higher efficiency
4.  Imported ABB motor is selected, which is characterized by energy saving, low power, powerful suction, stable performance, small noise
5. Clean air is uniformly and reasonably guided and distributed from air outlet. The noise is minimized to the least by reasonable silencing design in cleaning chamber
6. Intelligent type adopts convenient PLC automatic control It controls automatic pulse blowback on filter cartridge, thus can prolong the service life of filter cartridge
7.  Phase order indication of power supply, open-phase short circuit, over-load protection.
8.  Filter element is made of imported flame retardant nano fiber, which has large filtering area and high filtering precision to satisfy indoors discharging standards.
